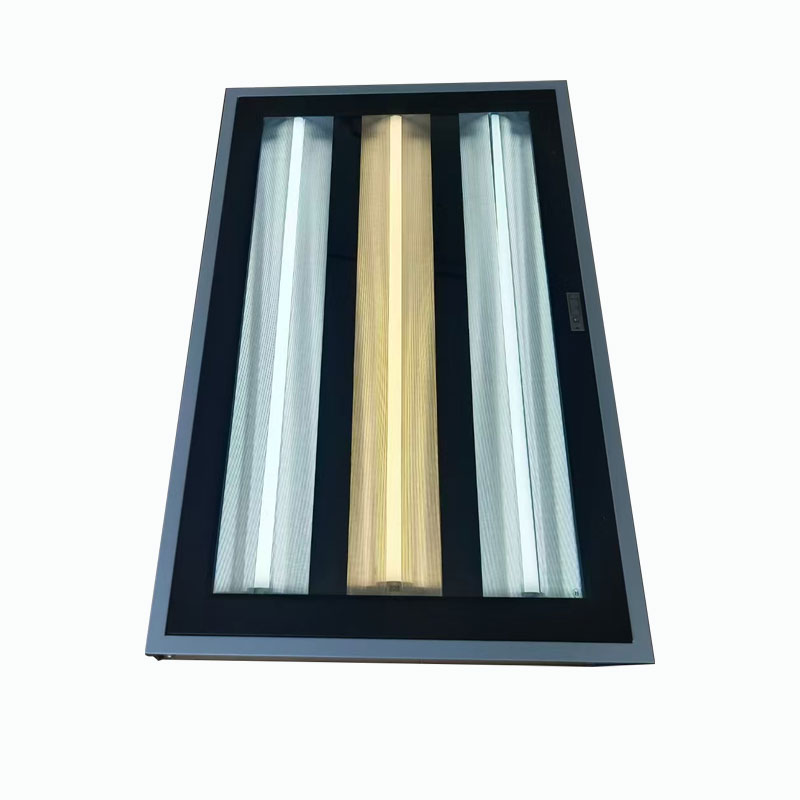

Paint booth light delivers true color reproduction with CRI ≥80, making it ideal paint spray booth LED lighting for precise mixing and inspection. Featuring high-efficiency LEDs (≥110lm/W), it saves over 60% energy and lasts 50,000 hours to minimize maintenance. Compatible with 110-265V, its compact design supports versatile mounting without obstructing workflow, while the modular structure ensures easy installation and service. Backed by a 2-year warranty and expert support, it guarantees long-term system stability.

Parameters:

Brand Name: MASER
Color Temperature: 4000K/6500K
Lifespan: 50000H/2-years warranty
Luminaire luminous flux: 7500 lm
Luminaire efficiency: Up to 110 lm / W
Power factor: >0.9
CRI (Ra>): 80
Input Voltage: 110-264V/50-60 Hz
Luminous surface: 180°
Waterproof Level (Im): IP54
Working Temperature(℃): -20°C/+45 °C
Housing: 0.8mm steel housing
Diffuser: tempered glass cover
Installation: M8 locking nuts on the back

Application:

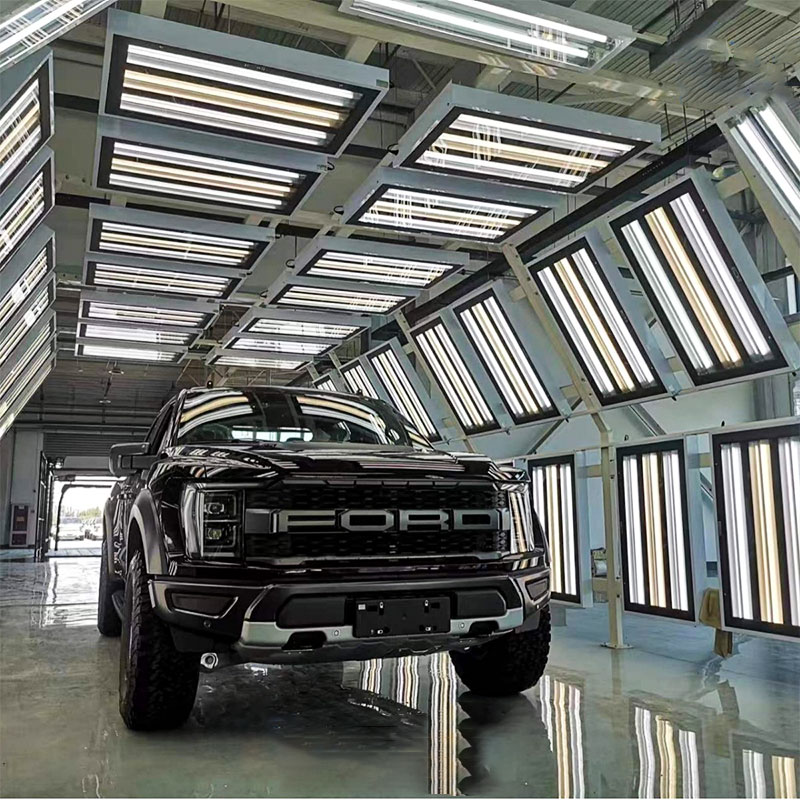

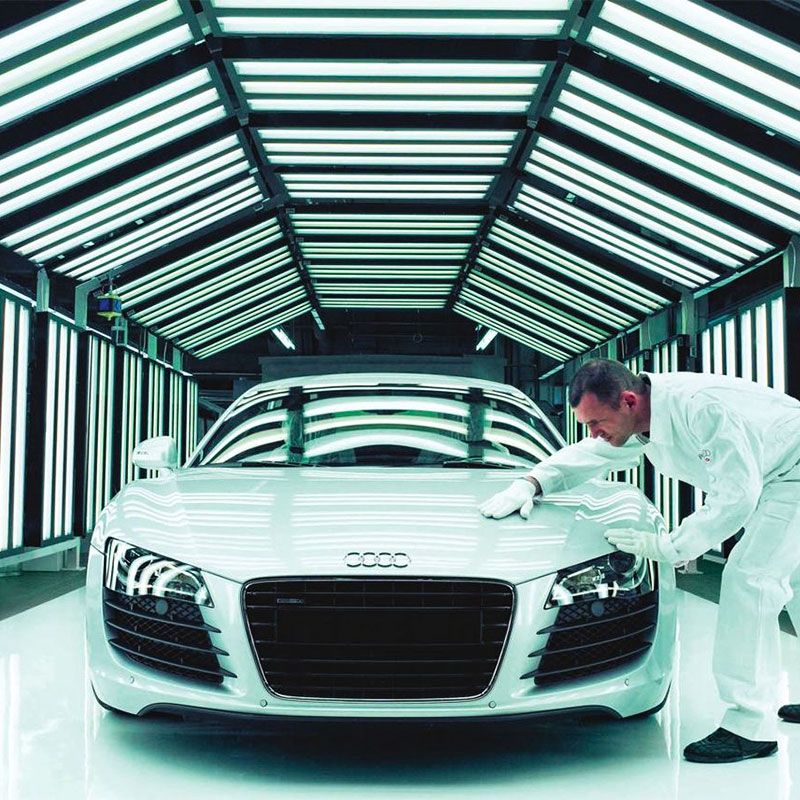

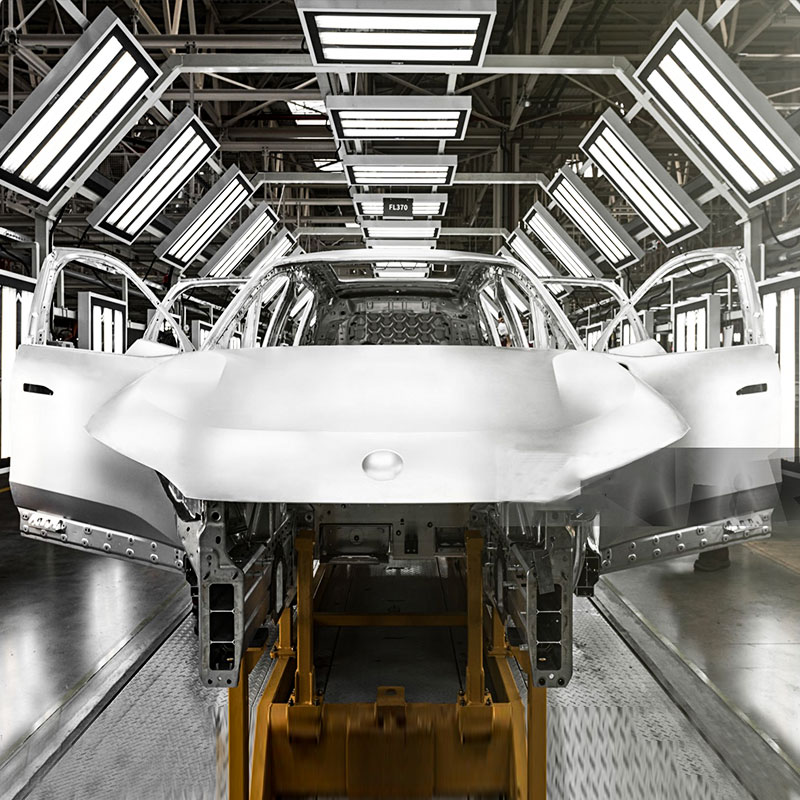

Our paint booth lighting system is ideally deployed across automotive painting lines, 4S repair stations, and robotic spraying cells. Featuring a high-precision light field, it meets rigorous requirements for diverse applications—from electrostatic spraying of EV battery packs to inspecting thermal barrier coatings on aero engines. The design ensures seamless integration with automated tracks while serving high-end custom sectors like yacht studios and motorcycle modification centers.

FAQ:

Q1: Why choose LED spray booth lights?
A:‌ LEDs offer a long lifespan (50,000+ hours), energy efficiency, low heat emission, and high color rendering, making them ideal for extended operations and precise color matching.

Q2: What are the installation height requirements?
‌A:‌ Typically mounted on the ceiling sides or top, 2.5–3.5 meters above the floor, to avoid direct glare and minimize shadows.

Q3: What color temperature is recommended?
‌A:‌ 4000K–6500K (neutral to cool white) is recommended to mimic natural light for accurate assessment of paint color and texture.

Q4: What is the minimum Color Rendering Index (CRI)?
‌A:‌ A CRI of Ra≥80 is suggested to ensure true color reproduction and reduce color mismatch errors.

Q5: Can paint booth lights be customized in size?
‌A:‌ Yes. Most manufacturers support non-standard customization to fit specific booth dimensions; please provide installation space drawings for confirmation.
