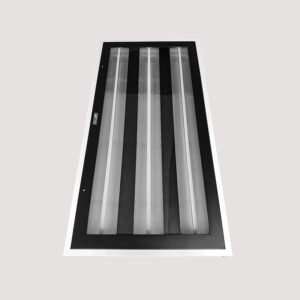

Automotive paint shop lighting

Customized upgrades for automotive paint shop lighting: adjust layouts, install advanced sources, match tech & process changes, keep it pro and efficient.

automotive paint Shop lighting manufacturers

MASER is a premier source manufacturer integrating R&D, production, and sales. With a 20,000㎡ production facility and over 20 years of engineering expertise, we specialize in delivering professional lighting solutions for the automotive and industrial coating industries.

◆ All lighting fixtures are independently designed and manufactured by the in-house R&D department, backed by the technical expertise of a dedicated team of over 30 engineers.
◆ MASER has established a comprehensive management system and strictly adheres to ISO9001 quality management standards throughout the production process.
◆ Every solution is data-verified through strict testing protocols, including spectrometer analysis, illuminance simulation, and aging tests.
◆ Our facility produces over 30,000 LED fixtures monthly, maintaining a defect rate of less than 1% and a customer complaint rate below 0.2%.
◆ MASER is committed to creating high-value partnerships through stable product quality, flexible customization capabilities, and an efficient service system.

Custom Automotive Paint Shop Lighting Solutions

Functional Features

1.Custom brightness levels with high-frequency dimming power supply
2.Custom color temperature options (6500K, 4000K, or combinations)
3. Custom input voltage and power supply configurations
4. Custom CRI and luminous flux requirements

Structure & Performance

1.Custom 0.8mm steel housing with anti-rust coating and rustproof lifespan
2.Custom special convex and concave prism plates and tempered glass covers
3.Custom dimensions and light source tube lengths (1.2m/1.5m)
4.Custom IP rating (IP54 dustproof) and explosion-proof grades

Aesthetics & Installation

1.Custom Branding & Label Printing:
(1). Inner/Outer Box Design (Color/Mono, Gloss/Matte)
(2). Logo 3D Printing or Conventional Printing
2. Custom installation methods (vertical/top mounting) with high-quality hoops and M8 locking nuts

Why choose automotive paint shop lighting?

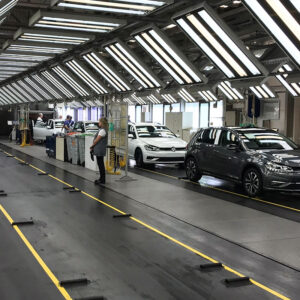

car spray booth lighting

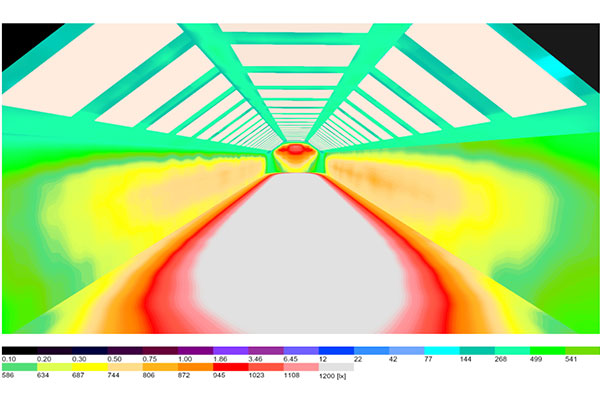

Lighting Test

1). Uniform Distribution: Even light across the entire work area.
2). High Visibility: Up to 1,297 lux vertical illuminance clearly reveals paint finishes and defects.
3). Stable Brightness: Consistent lighting ranging from 447 lx to 1,843 lx.

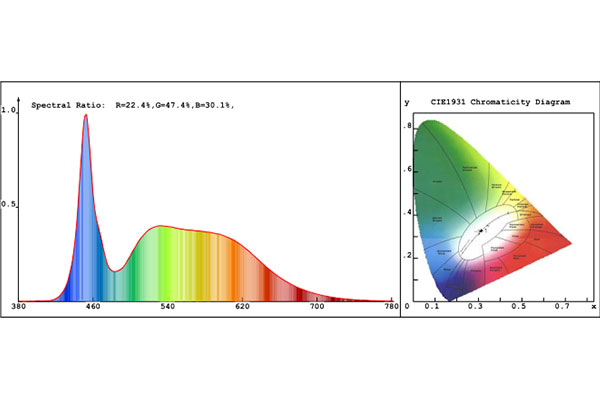

Spectral Test

1). Accurate Color: CRI ≥ 80 ensures true color reproduction.
2). High Efficiency: Delivers up to 125 lm/W for bright, energy-saving performance.
3). Stable Operation: Power factor > 0.9 guarantees efficient and reliable running.
4). Full Spectrum: Consistent light output across the 380–780nm range.
diy spray booth lighting

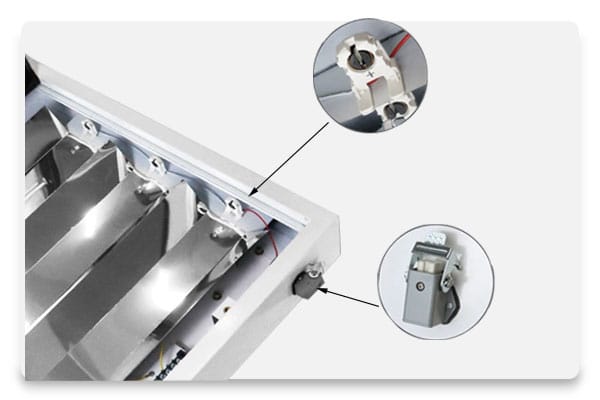

Safety & Durability

1). High-Temp Flameproof socket.
2). Reinforced Aviation Connector.
3). Safety-Certified Design.
4). Easy maintenance with single-end wiring and polycarbonate diffuser.

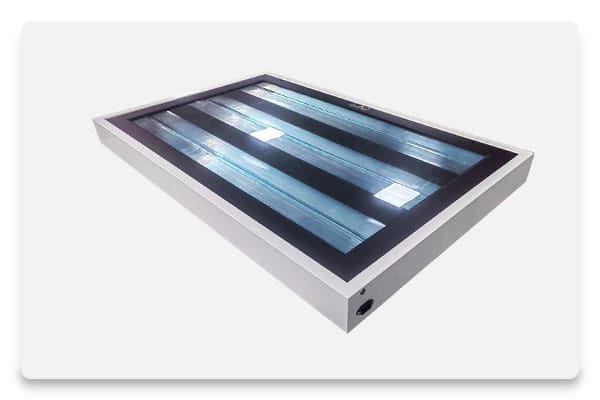

Premium material

1). 0.8mm steel housing with anti-rust coating.
2). WF2 anti-corrosion grade rustproof for 8-10 years.
3). Tempered glass cover with special convex and concave prism plates.

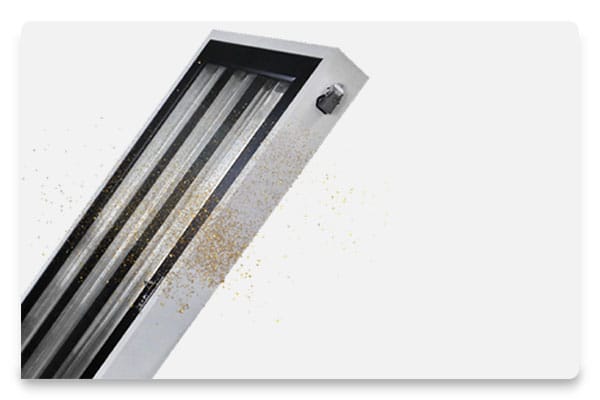

Excellent Sealing

1). IP54 protection: Waterproof, insect-proof, and rust-proof.
2). Seamless frame with optimal sealing.
3). Uniform light distribution and no glare dustproof design.

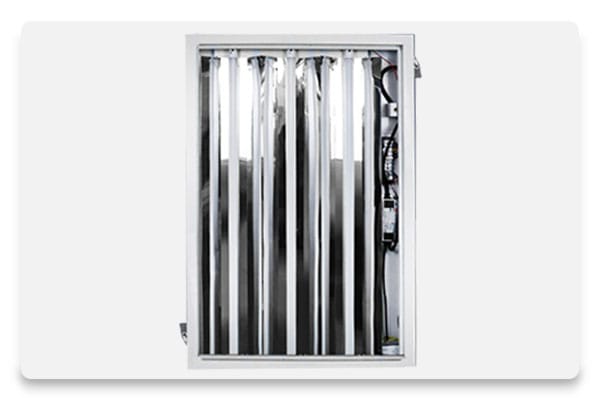

Optical-Excellence

1). High-reflectance mirror-finish aluminum.
2). Imported optical prism anhances light output efficiency.
3). Uniform light emission with high transparency.

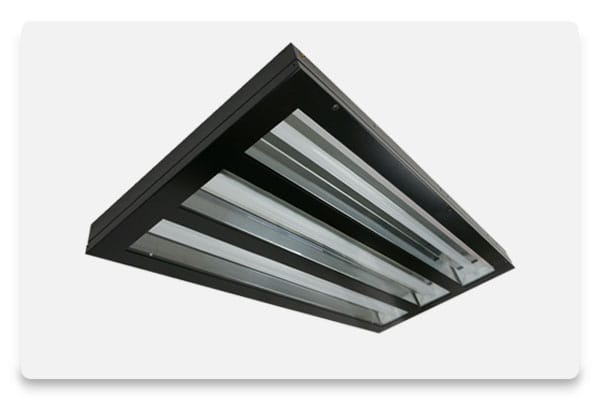

Effortless Installation

1). Vertical or top mounting using high-quality hoops.
2). Easy installation fixed with peripheral screws and M8 locking nuts on the back.
3). Tight fit for easy and time-saving disassembly.

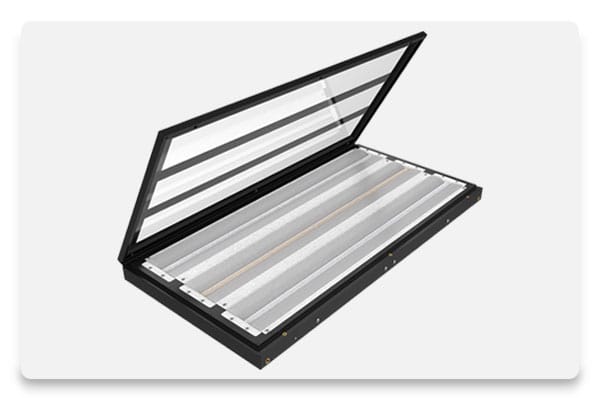

Hassle-Free Maintenance

1). Hinged flip design, easy to clean and replace.
2). One-click open and close, effortless and efficient operation.
3). Modular structure, simple lamp replacement.

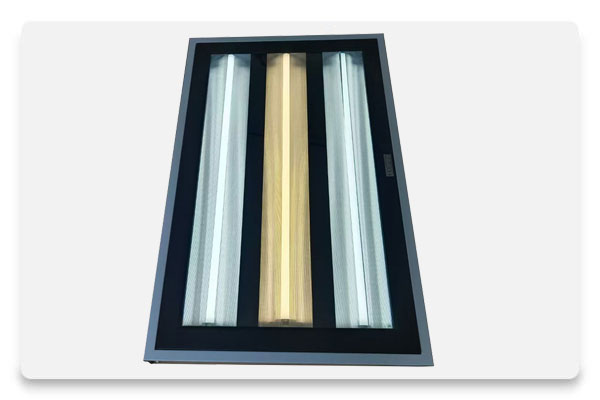

Adjust CCT Brightness

Adjustable Lighting System

1). Flexible design with high-lighting LED tubes or integrated modules.
2). Adjustable brightness via high-frequency dimming power supply.
3). Variable color temperature in 6500K – 4000K – 6500K.

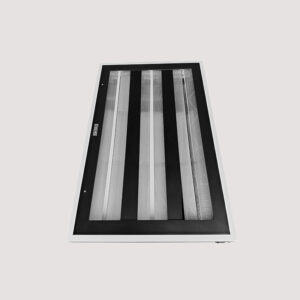

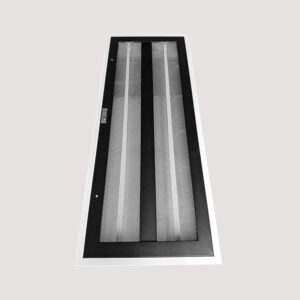

Automotive Paint Shop Lighting Dimension

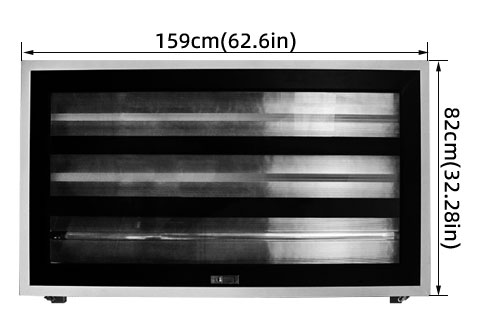

paint booth with led lighting

Dimensions: 159cm × 82cm (62.6” × 32.28”)
Power: 66W (Customizable)
Luminous Flux: 7500 Lumens

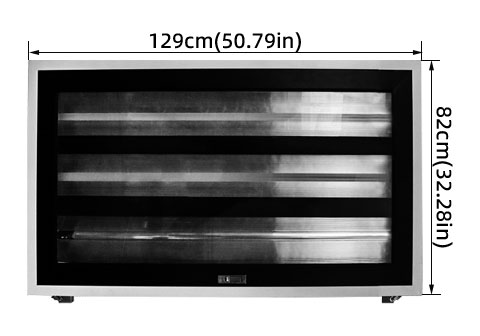

auto spray booth lighting

Dimensions: 129cm × 82cm (50.79” × 32.28”)
Power: 54W (Customizable)
Luminous Flux: 7500 Lumens

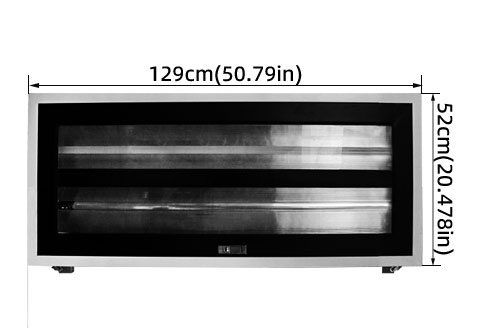

spray paint booth light fixture

Dimensions: 129cm × 52cm (50.79” × 20.47”)
Power: 36W (Customizable)
Luminous Flux: 7500 Lumens

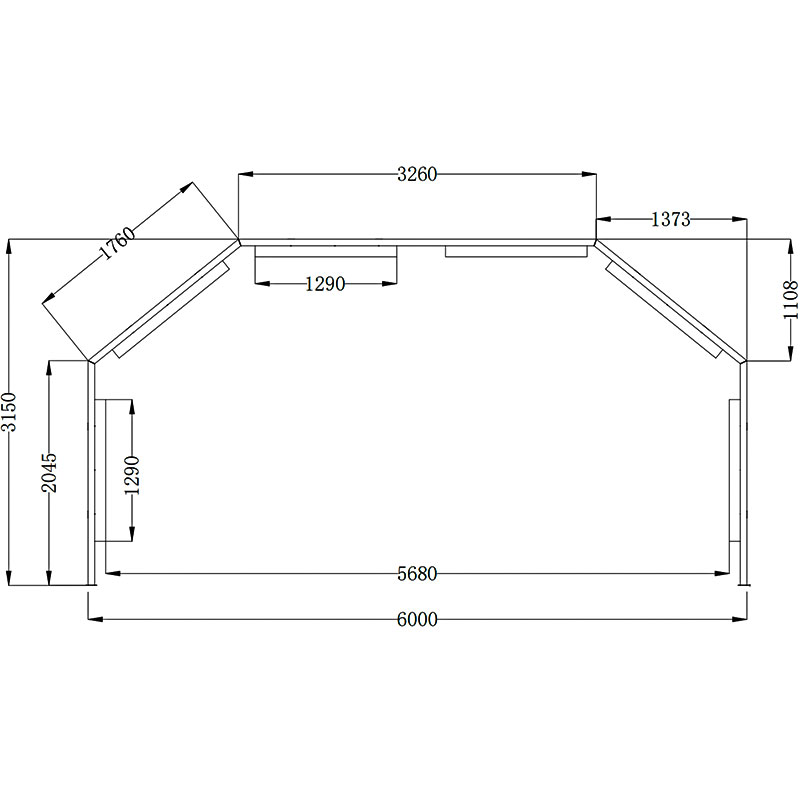

spray booth lights for sale china

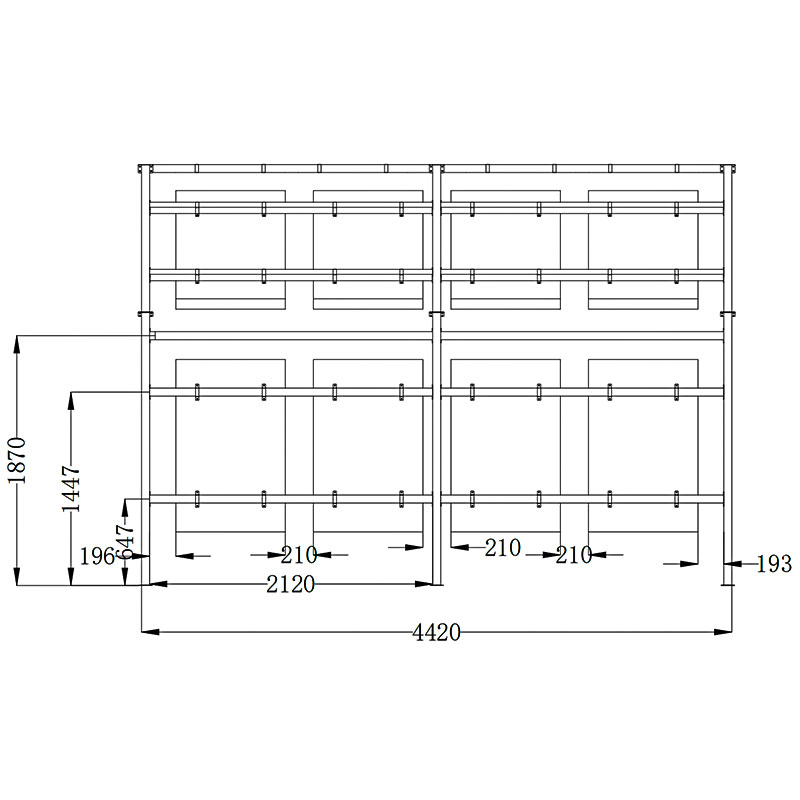

spray booth lights south africa
spray booth lights australia

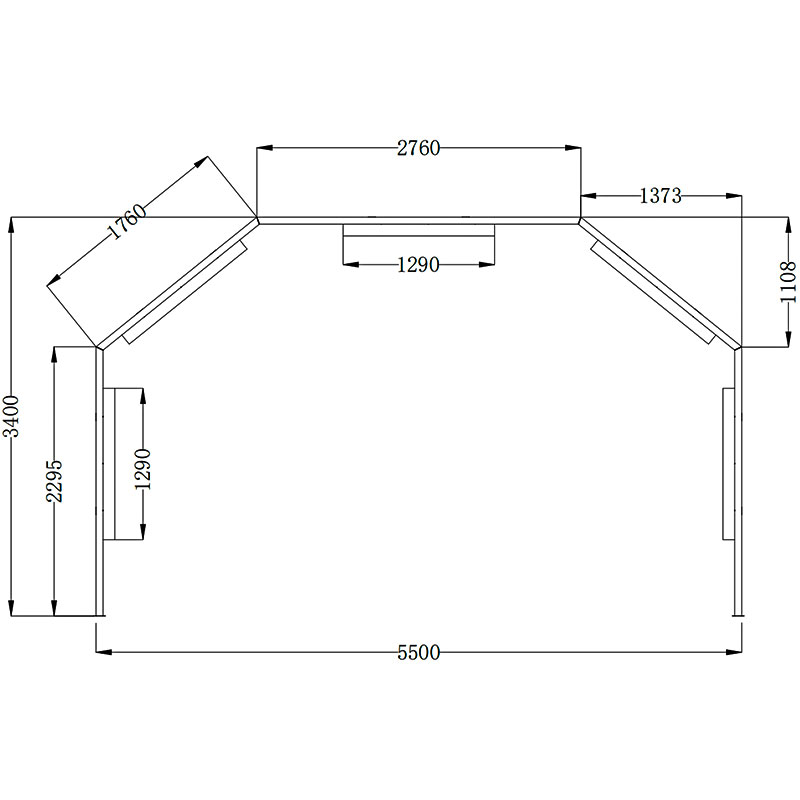

spray booth lighting fixtures uk

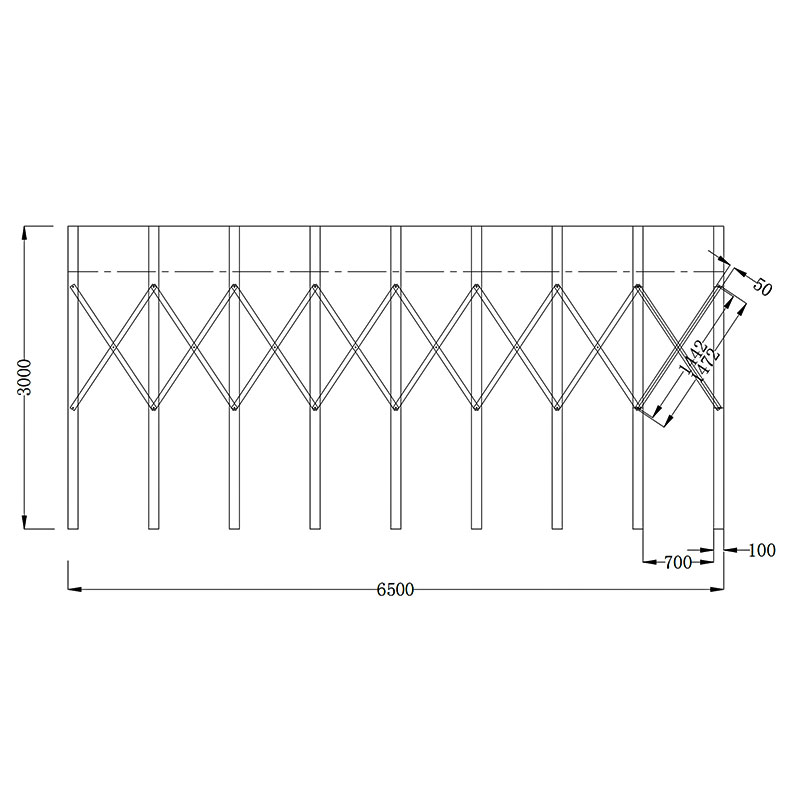

spray booth led lighting uk

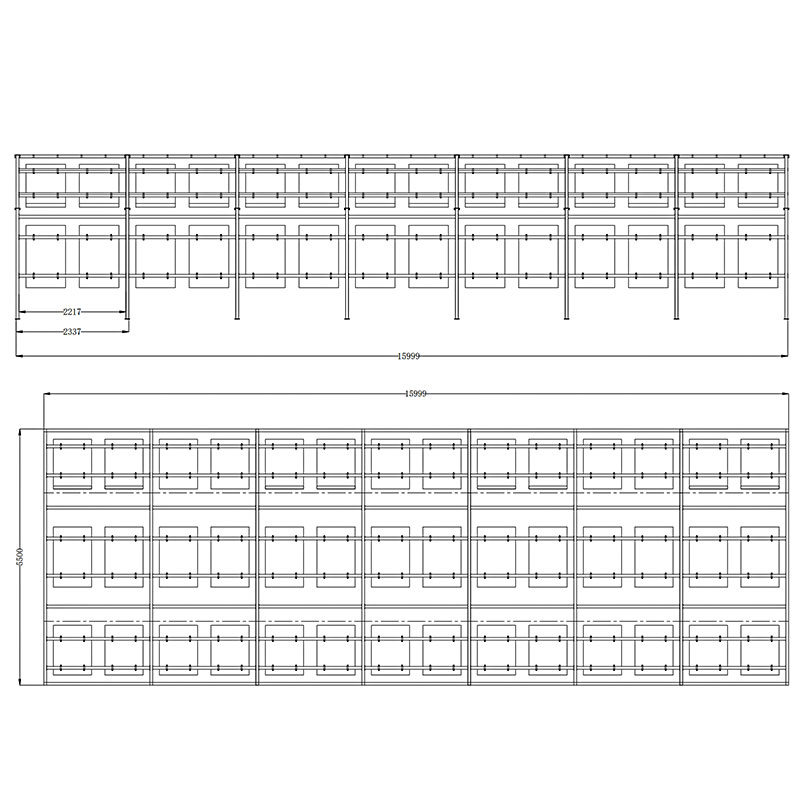

spray booth lighting ebay

automotive paint shop lighting Application

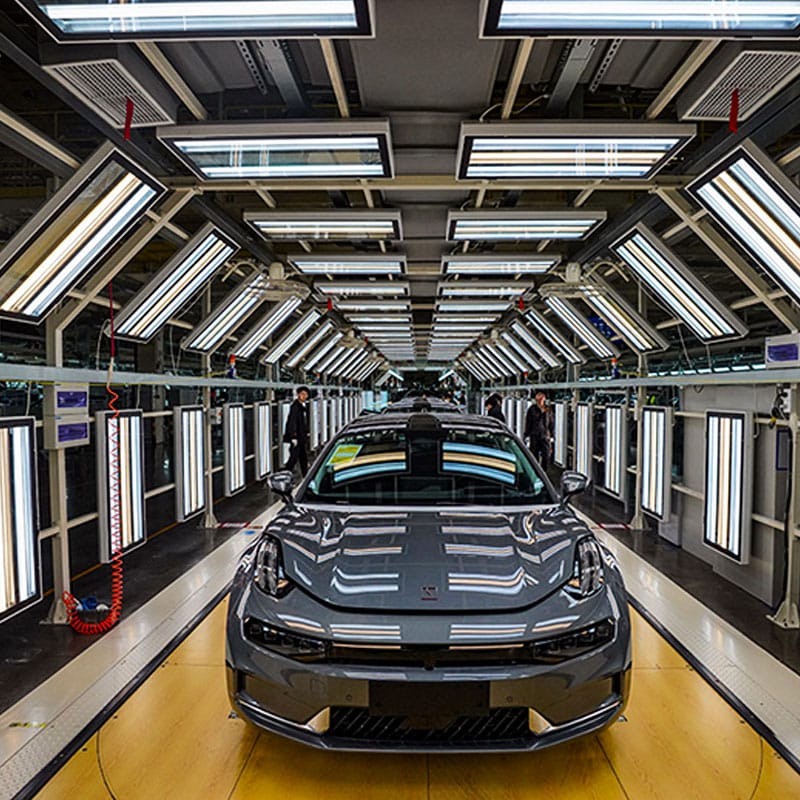

lights for paint booth

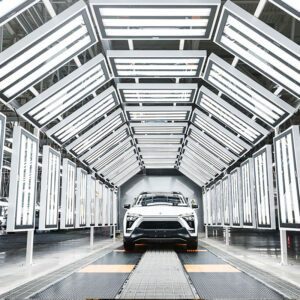

Primer Spray Area

The optical prism panel ensures uniform illumination and resists steam, providing stable performance in humid conditions to prevent uneven primer application and allow for precise inspection.

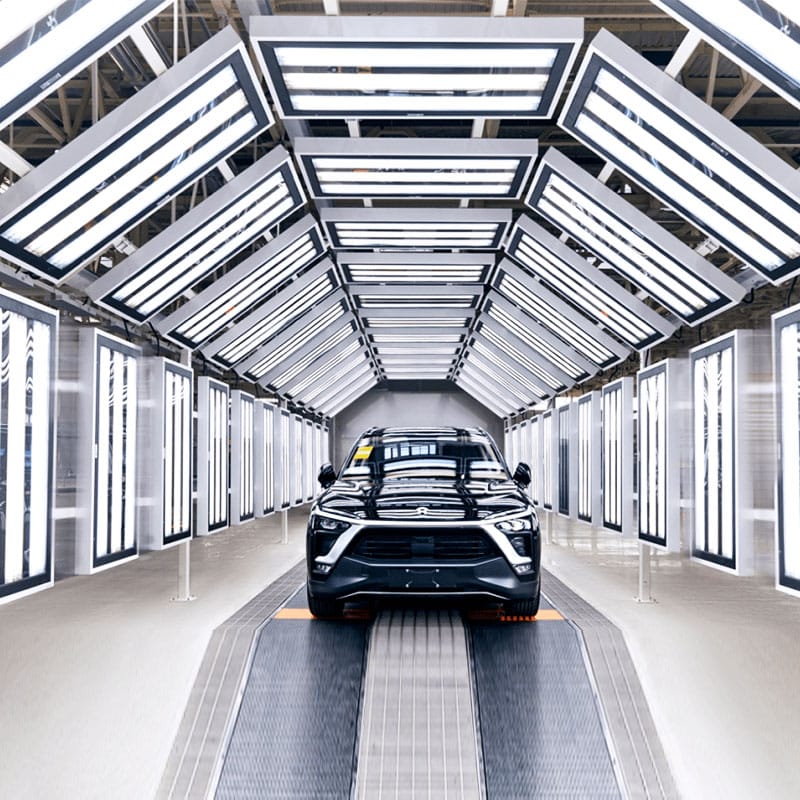

paint booth lights for sale

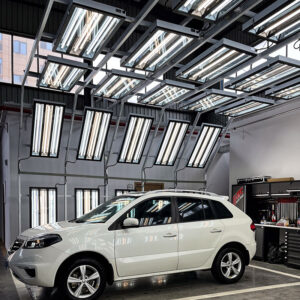

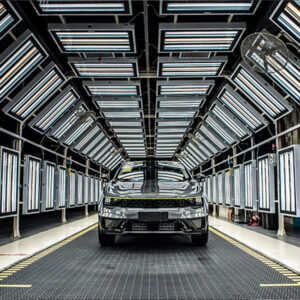

Top Coat Spray Area

High CRI ensures accurate color matching and prevents deviations by clearly revealing metallic paint gloss and solid paint saturation.

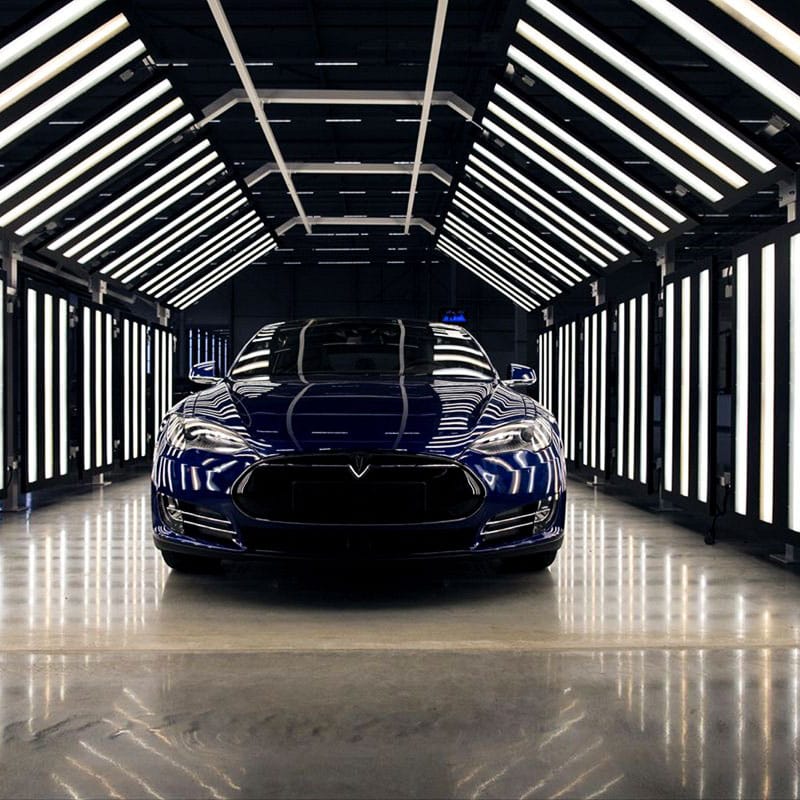

led lights for paint booth

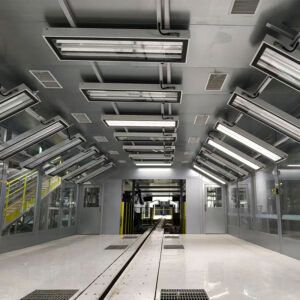

Paint Inspection Area

Adjustable angle and intensity, combined with flicker-free lighting, work to expose subtle defects and ensure high quality standards.

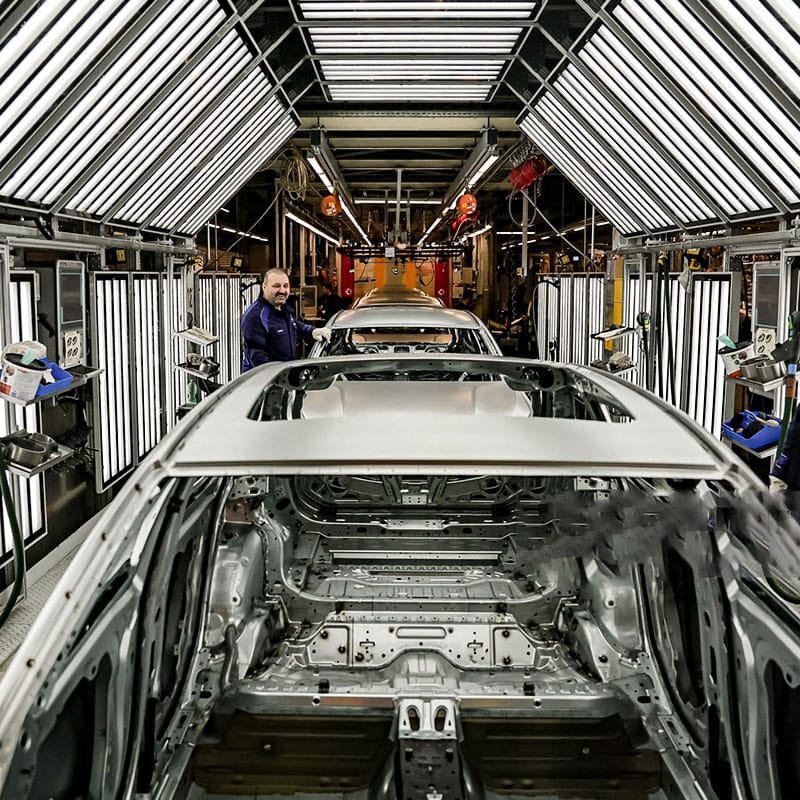

paint booth led light fixtures

Powder Coating Booths

Powder spray booth LED lighting is designed to optimize airflow, resist overspray, and provide effective dust filtration, delivering stable illumination for clean, uniform coatings.

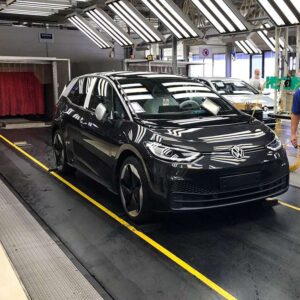

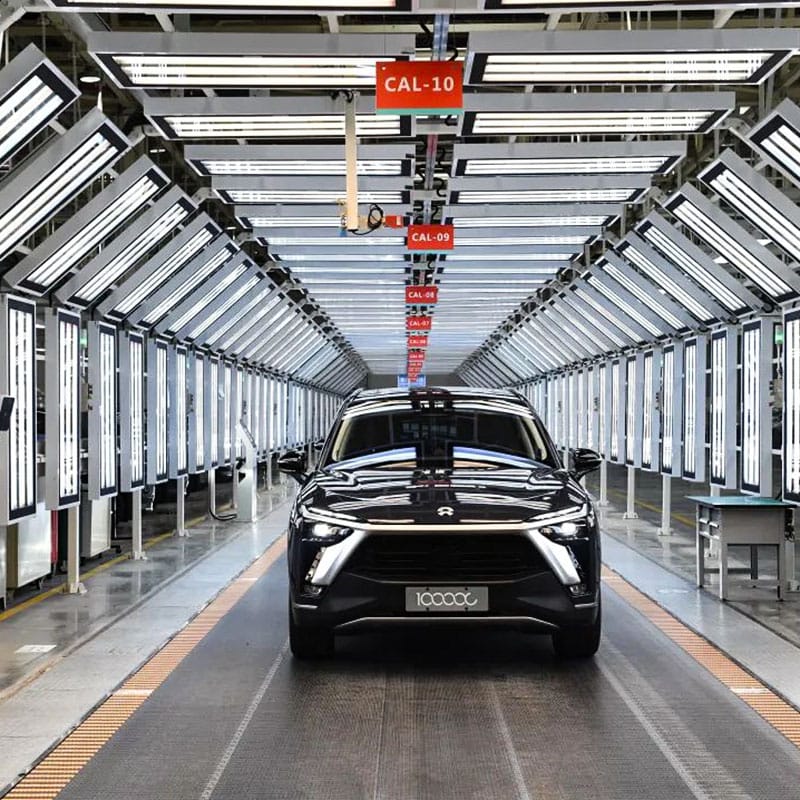

lighting for paint booth

spraying workshop

Engineered for control, our painting system provides the optimal conditions for meticulous application, ensuring every coating is applied with unmatched accuracy.

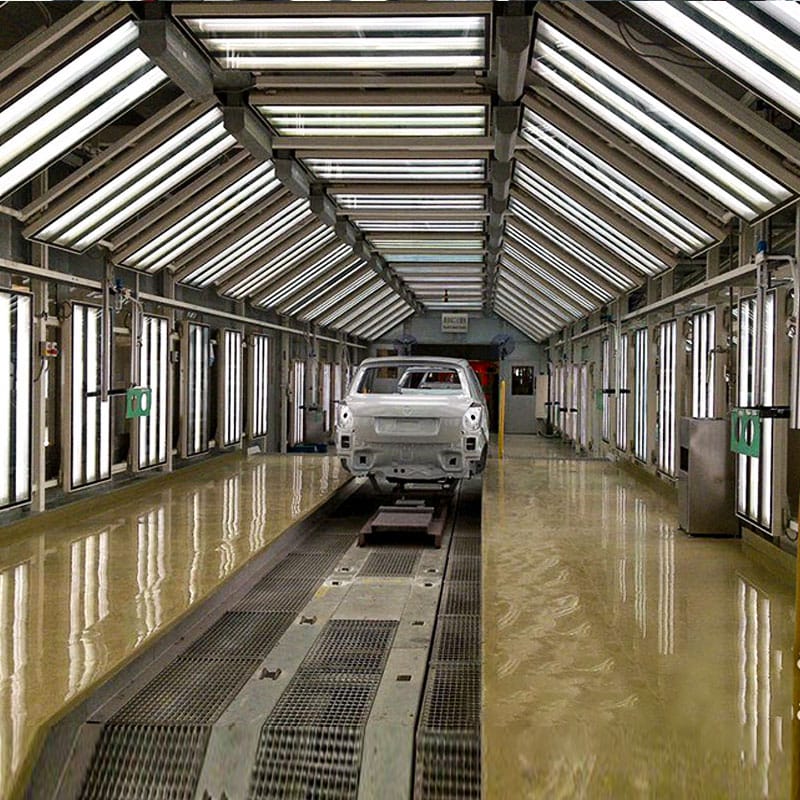

paint booth led lighting

Paint Area

Technicians need to be able to see what they are painting to prevent the need for rework, which is often the biggest expense for a shop.

Frequently Asked Questions

A: We provide energy-efficient LED paint booth lighting that is as bright as fluorescent but consumes less power.

A: Most of our explosion-proof paint booth LED lighting fixtures have tempered glass lenses.

A: Certainly, as long as it is carried out by a certified electrician.

A: Yes. We specialize in full OEM/ODM customization. Every detail—from optical lens angle and dimensions to the mounting method—is tailored to your specific spray booth to ensure optimal performance.

A: Yes. It is certified explosion-proof, designed to prevent sparks and control surface temperature, making it safe for hazardous areas like spray booths.

A: No. Features a high-quality optical prism panel with scratch and corrosion-resistant treatment, and long-life LEDs (50,000H) tested for minimal light decay. Maintains brightness and color accuracy over time.

A: No. Fully sealed with waterproof coating. Works reliably in over 85% humidity.

A: Use full-spectrum white light that replicates daylight for true color accuracy and provides sufficient brightness to reveal surface textures.

A: They are safer and don’t present the fire and explosion hazard that overheated bulbs do when coming into contact with paint chemicals.

A: Even auto body paint booth lighting reveals fine details on the paint surface; it prevents misjudgments caused by shadows or glare and enhances overall efficiency and quality.

A: Color temperature, color rendering index (CRI), light intensity and installation method should be taken into account.

A: The CRI evaluates a light source’s ability to display true colors. For paint booths, a CRI of 80+ is standard, while 90+ ensures precise color matching.

A: Adequate paint booth lighting system allows painters to precisely assess paint colors, reducing mistakes and rework.

A: No, regular lights are not safe for paint booths. They can create sparks or heat that could ignite flammable fumes, leading to a fire or explosion.
