Our Car paint inspection light is engineered for high-precision surface defect detection, delivering high-fidelity illumination with a CRI exceeding 80. This ensures that color mismatches, fine scratches, orange peel, and dents are clearly visible from critical angles. By simulating natural daylight spectra, our system eliminates the flicker and color shift common in traditional fluorescent fixtures, enabling consistent quality judgments across varying conditions. Ideal for automotive painting production lines, this explosion proof paint booth lighting solution significantly reduces miss rates, enhances brand reputation, and guarantees every vehicle leaves flawless.
Parameters:
Brand Name: MASER
Size: 159*82cm (62.6 * 32.28 in.)
Color Temperature: 6500k White
Lifespan: 50000H/2-years warranty
Wattage: 66W
Luminaire luminous flux: 7500 lm
Luminaire efficiency: Up to 110 lm / W
Power factor: >0.9
CRI (Ra>): 80
Input Voltage: 110-264V/50-60 Hz
Luminous surface: 180°
Waterproof Level (Im): IP54
Working Temperature(℃): -20°C/+45 °C
Housing: 0.8mm steel housing
Diffuser: tempered glass cover
Installation: M8 locking nuts on the back
Application:

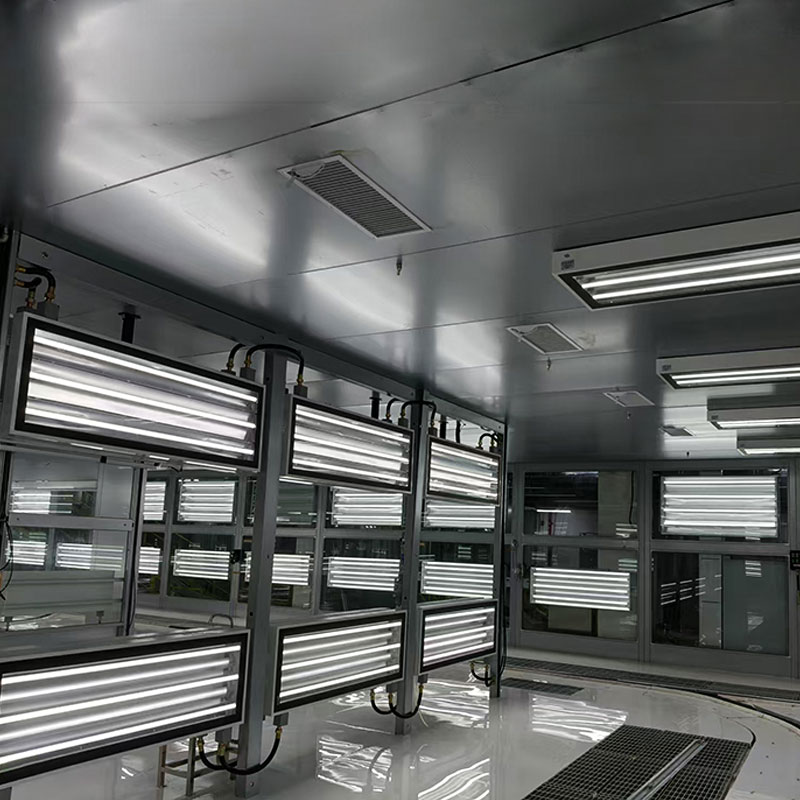

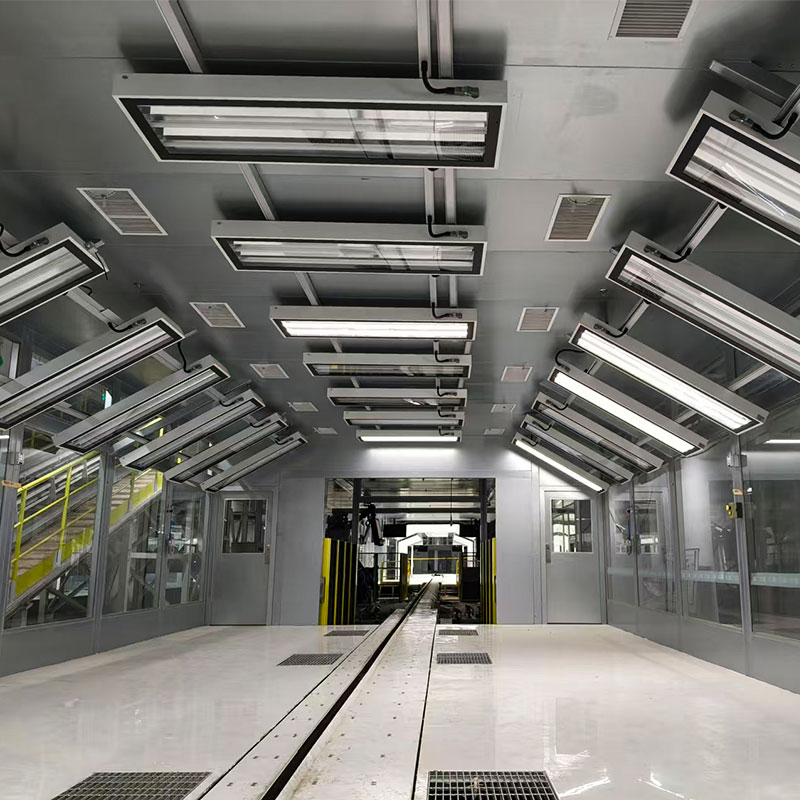

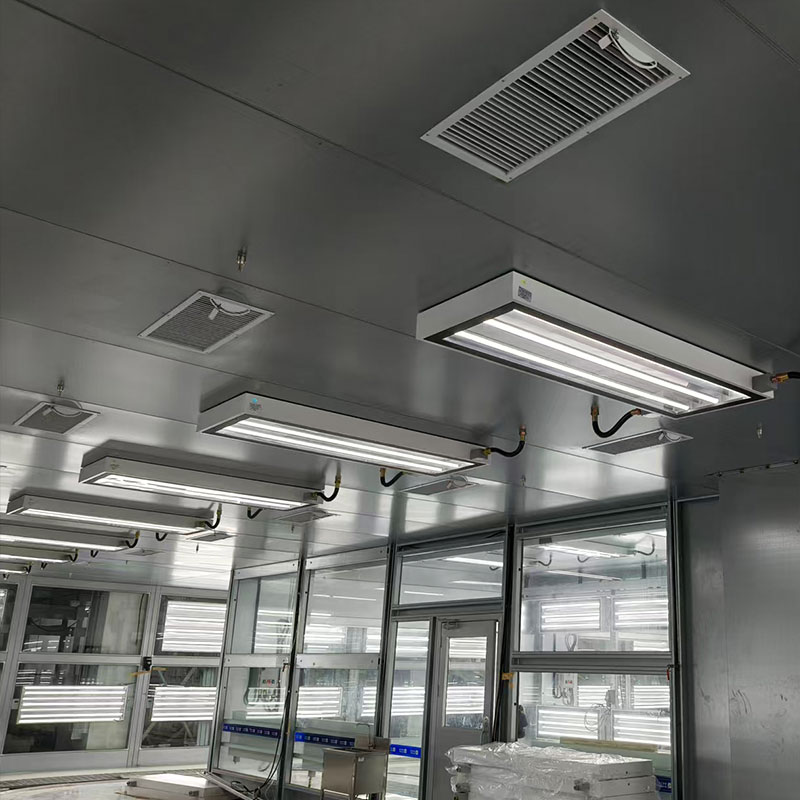

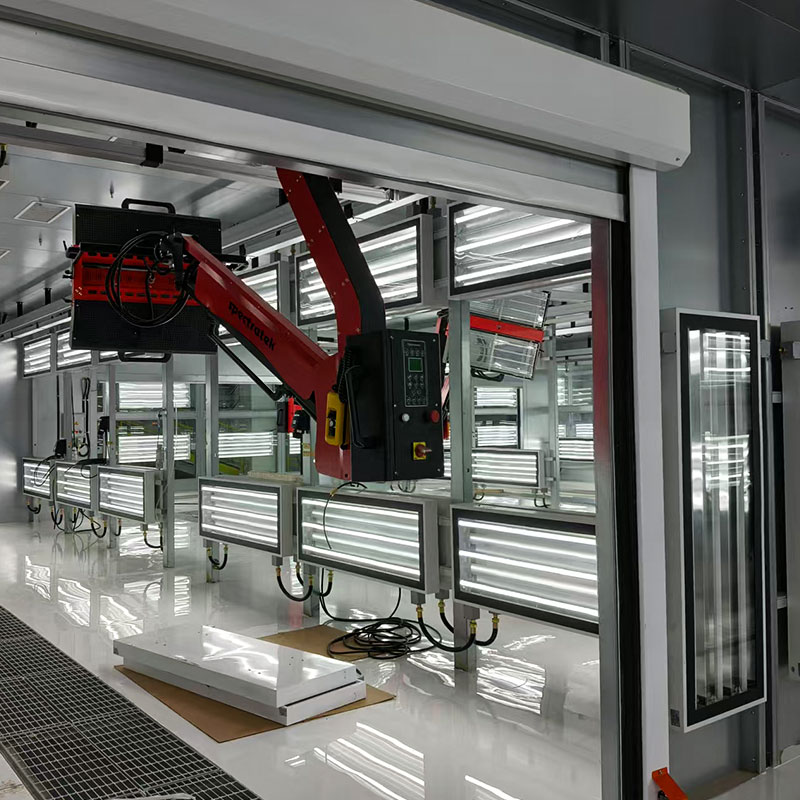

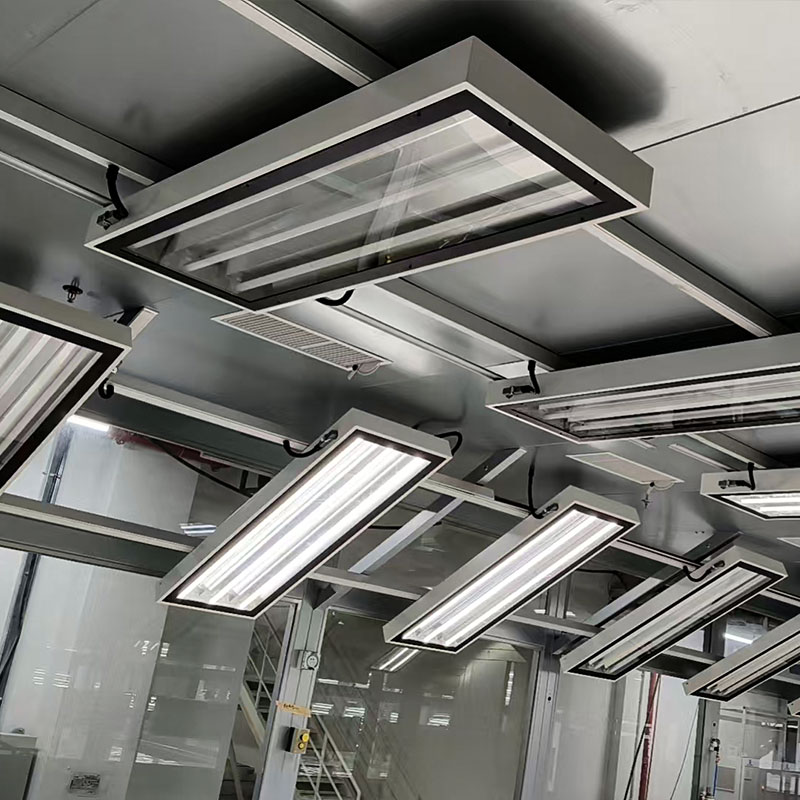

Inspection light car paint solutions are ideally deployed across automotive manufacturing painting lines, 4S quick repair stations, and industrial robot spraying production lines. With a high-precision light field, this system satisfies the rigorous process requirements for diverse applications, ranging from electrostatic spraying of new energy vehicle battery packs to the inspection of thermal barrier coatings on aero engines. Its design ensures seamless compatibility with automatic spraying tracks while also serving high-end customized sectors like yacht painting studios and motorcycle art modification centers.
FAQ:
Q1: Is the car inspection lighting flicker-free? Will it interfere with high-speed cameras or robotic vision systems?
A: Yes. Our drivers are engineered to be 100% flicker-free (<1% flicker index).
Q2: Can these lights operate reliably in high-temperature curing ovens or bake cycles?
A: Yes. Featuring specialized heat-dissipating housings and drivers, these lights withstand extreme operating temperatures without light degradation or failure.
Q3: What is the expected lifespan, and how does humidity affect the driver?
A: Our automotive paint booth lighting are rated for 50,000+ hours. The driver features potting sealant and an IP54 rating, making it highly resistant to the high humidity and water wash-downs common in spray booth cleaning cycles.
Q4: What happens if a single LED chip fails? Does the whole fixture go dark?
A: No. Our fixtures use a multi-string parallel circuit design. Even if a single LED chip fails, the remaining chips continue to operate at near-full brightness, ensuring uninterrupted spray painting operations. Failed chips can be swiftly replaced during scheduled maintenance.
