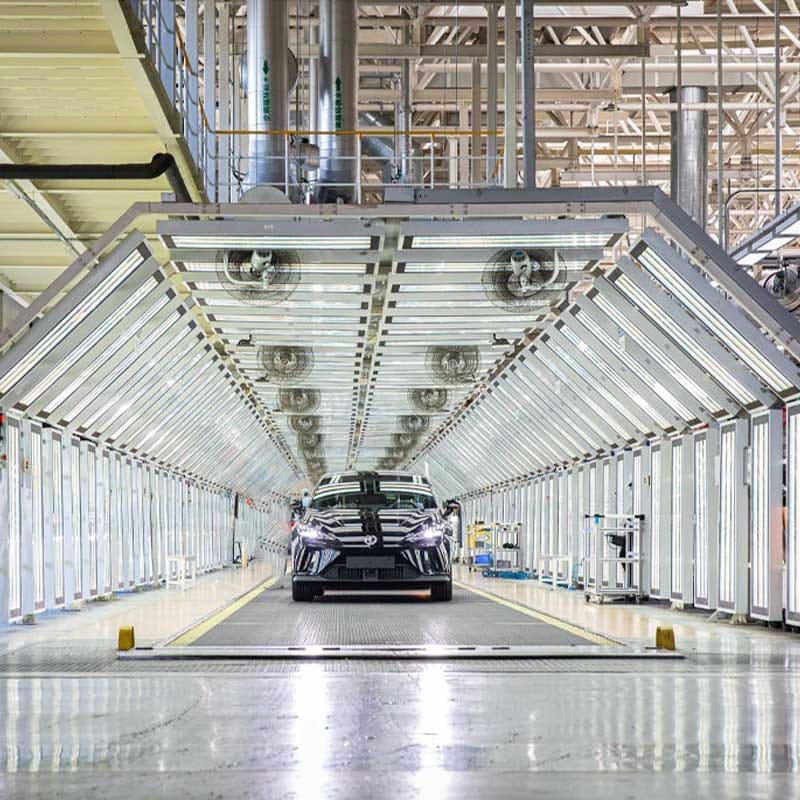

LED paint booth lights system designed for automotive manufacturing and industrial coating scenarios, this system integrates CRI≥80 full spectrum LED light sources to accurately reproduce vehicle paint gradients and metallic particle textures. The automotive spray booth lighting employs a vertical aluminum strip interleaved arch configuration, forming a semi-enclosed noise-reducing cavity while optimizing acoustic field diffuse reflection through modular assembly, effectively suppressing mechanical echo interference for inspectors. Equipped with 180° wide angle lenses, the LED spray booth lights eliminate light spot fragmentation during vehicle movement, ensuring shadow-free illumination coverage across assembly lines.
Parameters:
Brand Name: MASER
Color Temperature: 4000K/6500K
Lifespan: 50000H/2-years warranty
Luminaire luminous flux: 7500 lm
Luminaire efficiency: Up to 110 lm / W
Power factor: >0.9
CRI (Ra>): 80
Input Voltage: 110-264V/50-60 Hz
Luminous surface: 180°
Waterproof Level (Im): IP54
Working Temperature(℃): -20°C/+45 °C
Housing: 0.8mm steel housing
Diffuser: tempered glass cover
Installation: M8 locking nuts on the back
Application:
LED paint booth light is suitable for automotive manufacturing painting lines, 4S quick repair stations, and industrial robot spraying production lines. Its high-precision light field can meet the process requirements of electrostatic spraying of new energy vehicle battery packs, inspection of thermal barrier coatings of aero engines, and other processes. The arched tunnel design of this system is compatible with automatic spraying tracks, and it also extends to high-end customized painting fields such as yacht painting studios and motorcycle art modification centers.
FAQ:
Q1: What CRI (Color Rendering Index) is required for paint booth lighting?
A: A minimum CRI 80+ is recommended to accurately reveal true paint colors and avoid mismatches during vehicle repairs.
Q2: Can these lights withstand chemical exposure from solvents or cleaners?
A: Absolutely. The housings are made of chemical-resistant polycarbonate with sealed gaskets to prevent corrosion.
Q3: How do I prevent shadows in the paint booth?
A: Use uniformly distributed LED light with wide angle and edge-to-edge illumination for shadow-free coverage.
Q4: Do the lights generate heat that could affect paint curing?
A: No. LEDs produce minimal radiant heat, preventing premature drying or dust attraction.
Q5: How do I clean resin or overspray from the fixtures?
A: The smooth, anti-static lens surface allows easy wiping with isopropyl alcohol or specialized booth cleaners.
