Our automotive painting workshop lighting utilizes industrial LED technology to reduce energy consumption by up to 60% compared to traditional halogen or metal halide systems, while extending service life to over 50,000 hours for near maintenance-free operation. Beyond exceptional energy efficiency, these spray booth lights integrate smart dimming and color temperature control, allowing users to flexibly adjust illuminance and color temperature (adjustable from 4000K to 6500K) based on inspection tasks, such as examining dark paint finishes or verifying interior details. Their robust dust-proof and water-proof design (IP54 rating) ensures reliable performance in harsh environments like spray booths and washing areas.

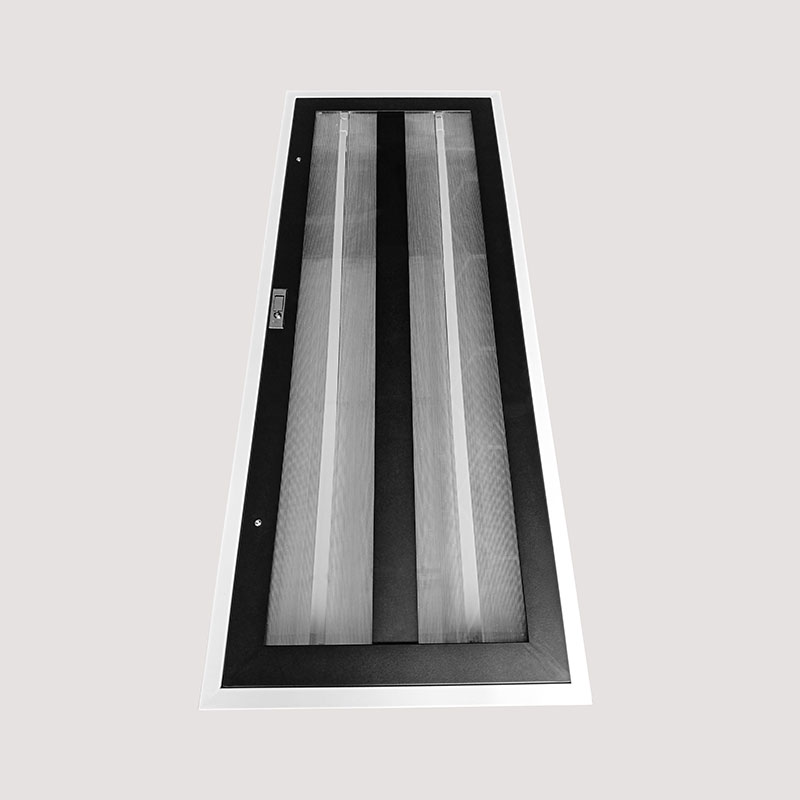

Parameters:
Brand Name: MASER
Size: 129*52cm (50.7 * 20.47 in.)
Color Temperature: 6500k White
Lifespan: 50000H/2-years warranty
Wattage: 36W
Luminaire luminous flux: 7500 lm
Luminaire efficiency: Up to 110 lm / W
Power factor: >0.9
CRI (Ra>): 80
Input Voltage: 110-264V/50-60 Hz
Luminous surface: 180°
Waterproof Level (Im): IP54
Working Temperature(℃): -20°C/+45 °C
Housing: 0.8mm steel housing
Diffuser: tempered glass cover
Installation: M8 locking nuts on the back
Application:

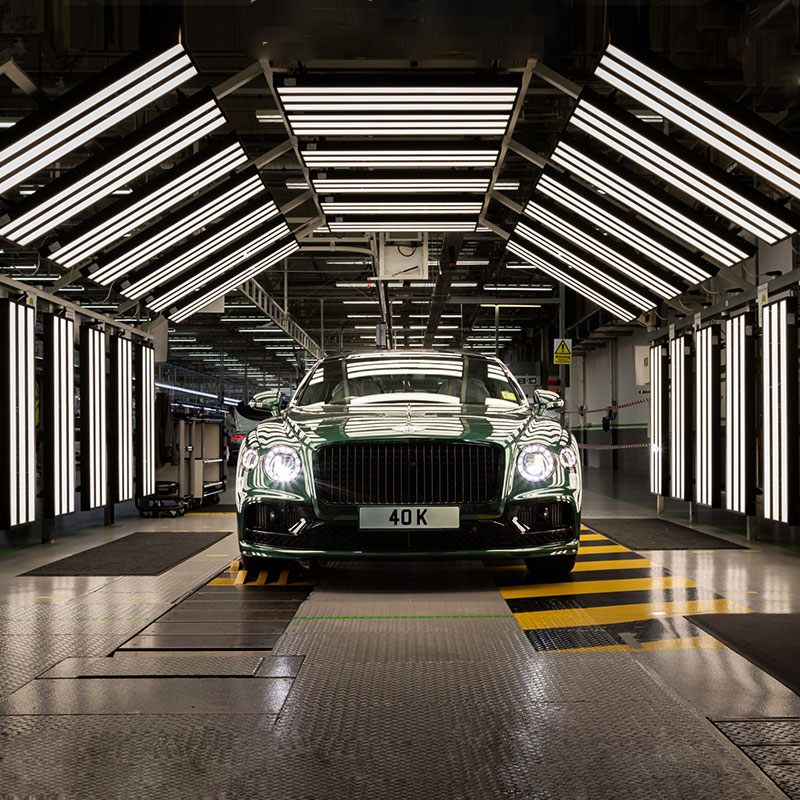

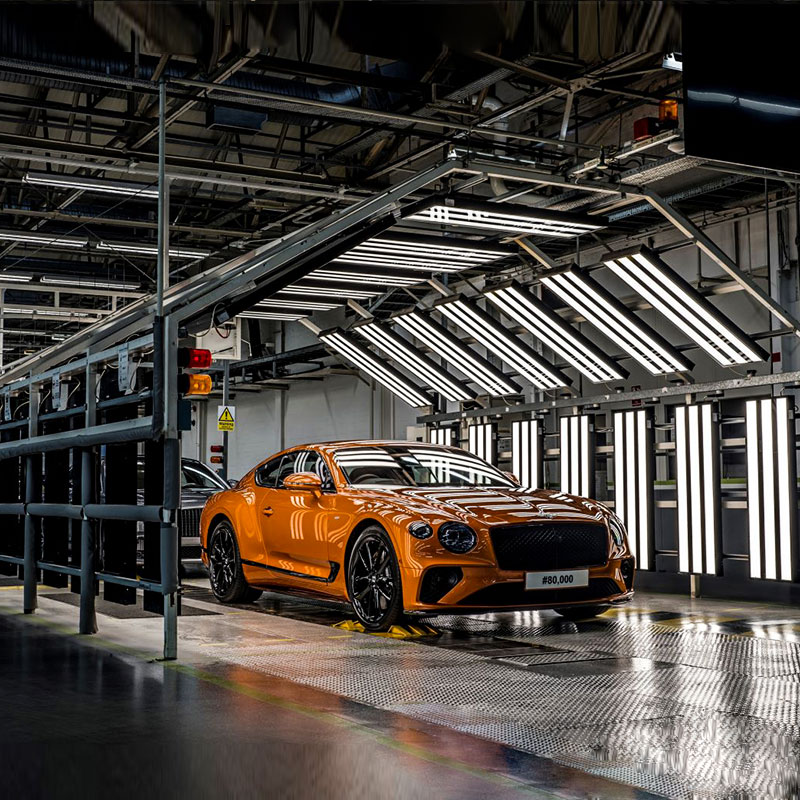

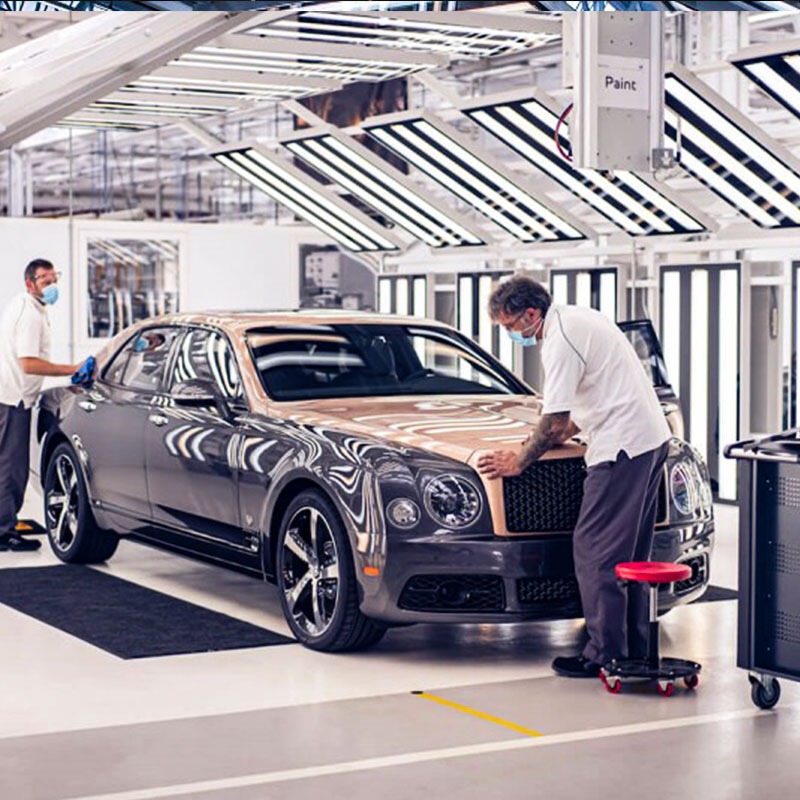

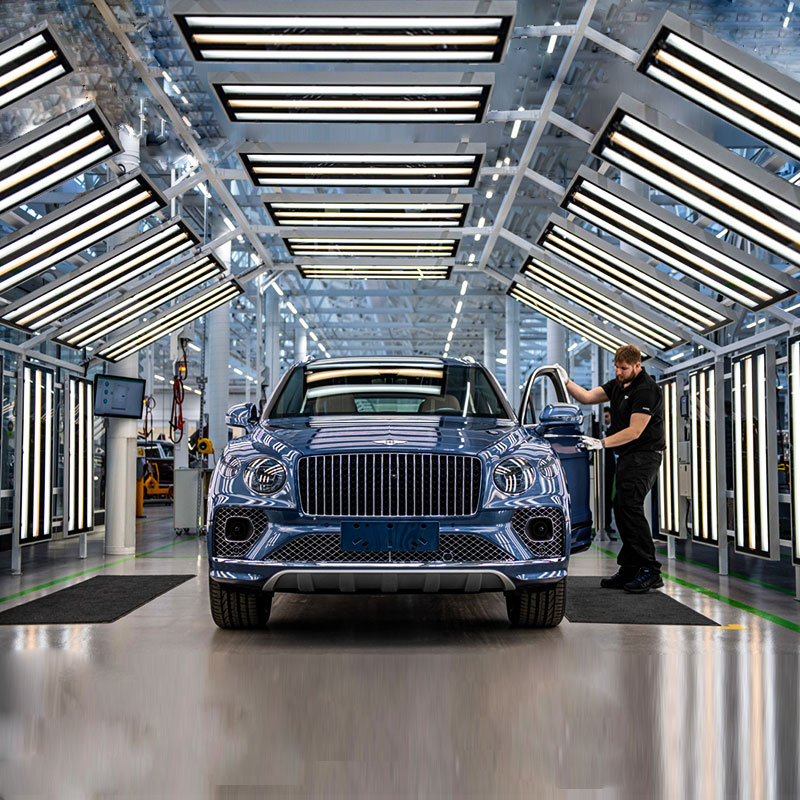

Automotive paint booth lights are suitable for automotive manufacturing painting lines, 4S quick repair stations, and industrial robot spraying production lines. Its high-precision light field can meet the process requirements of electrostatic spraying of new energy vehicle battery packs, inspection of thermal barrier coatings of aero engines, and other processes. The arched tunnel design of this system is compatible with automatic spraying tracks, and it also extends to high-end customized painting fields such as yacht painting studios and motorcycle art modification centers.
FAQ:
Q1: How do I clean heavy paint overspray without damaging the lamp or compromising its explosion-proof rating?
A: Our paint inspection light features solvent-resistant tempered glass, safe for wiping with specialized thinners. Critical: Always power off and cool the unit before disassembly. Re-check the sealing gasket integrity before re-installing to maintain explosion-proof safety.
Q2: Is ceiling mounting or side-wall mounting better for a spray booth？
A: The optimal setup is “Ceiling Diffuse + Side-Wall Assist.” Ceiling lights ensure uniform, shadow-free illumination, while 45° side lighting eliminates reflections on curved surfaces. This combination maximizes defect detection for your paint inspection light system.
Q3: Can we directly replace old lamps with new explosion-proof lights in a retrofit project?
A: Assessment is required. Explosion-proof standards demand high cable sealing. Typically, you must replace flexible conduits and sealing fittings. We recommend professional electricians rewire according to explosion-proof codes to ensure your paint inspection light installation is compliant.
Q4: Will the lights flicker or degrade quickly when the bake oven reaches 70°C？
A: No. This paint inspection light is engineered for high-heat environments. It includes built-in thermal protection and isolated heat-dissipation structures, ensuring stable operation and minimal lumen depreciation during continuous baking cycles.
Q5: Does static buildup pose a spark risk? Is extra grounding needed?
A: Our paint inspection light housing includes a dedicated grounding bolt. Simply connect the workshop ground wire securely to this terminal to dissipate static. We include a grounding diagram with every shipment to guarantee safety compliance.
