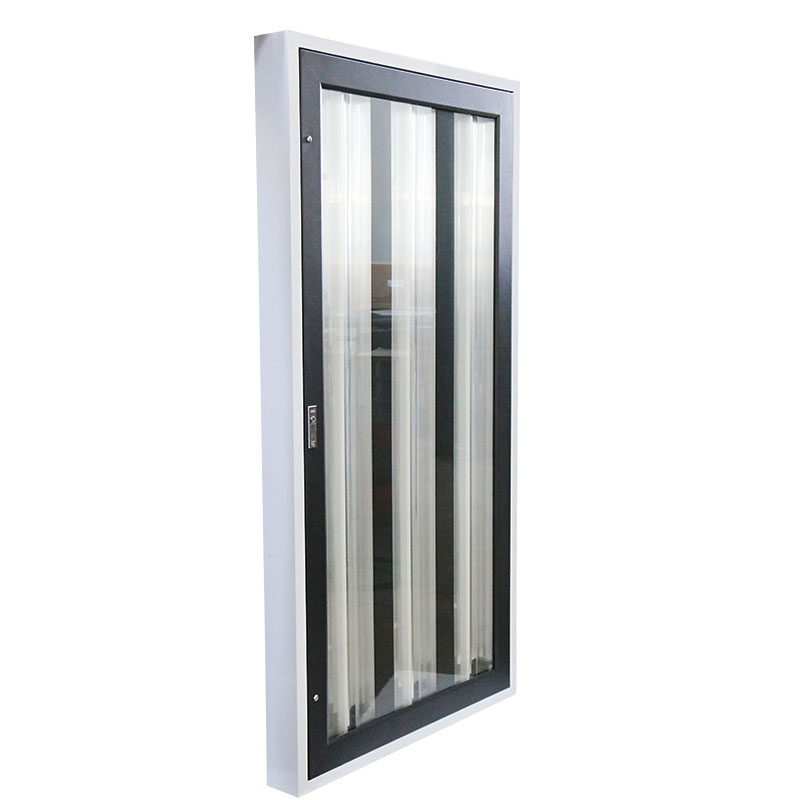

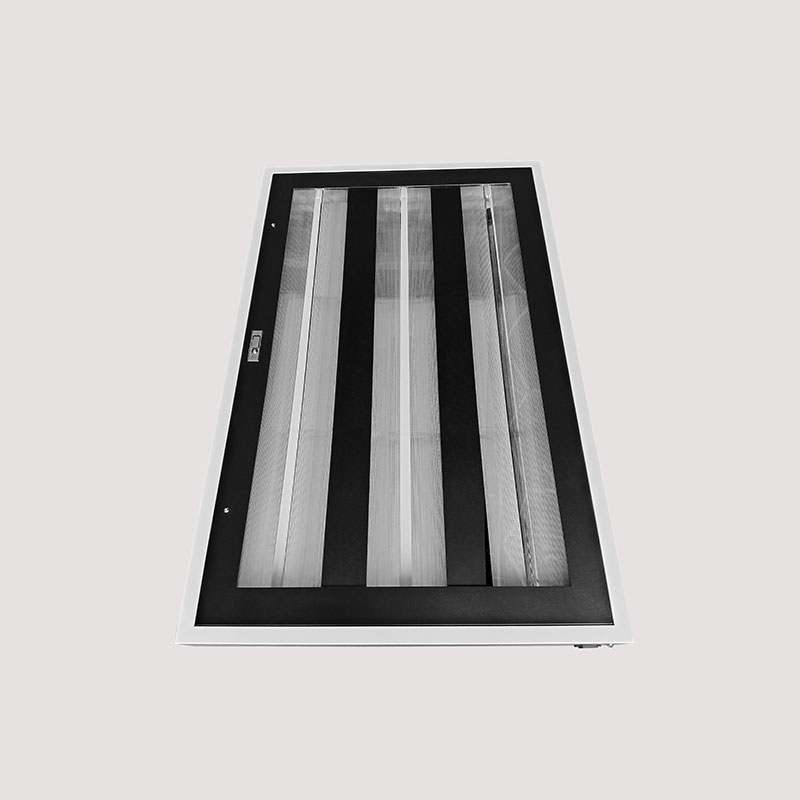

Our automotive inspection booth lighting system is engineered with advanced ergonomics to create a uniform, glare-free environment. Utilizing unique diffuse reflection technology and a multi-angle array layout, our LED spray booth light effectively eliminates harsh glare and shadow blind spots caused by direct lighting. This ensures soft, comprehensive coverage across every vehicle curve.
This uniform illuminance not only accelerates inspection speeds but also significantly reduces technician misjudgments and physical discomfort caused by visual fatigue. The modular design allows for seamless adaptation to inspection stations of any size and tunnel car washes. We provide a professional, comfortable workspace that ultimately boosts your overall operational efficiency.
Parameters:
Brand Name: MASER
Size: 129*82cm (50.7 * 32.28 in.)
Color Temperature: 6500k White
Lifespan: 50000H/2-years warranty
Wattage: 54W
Luminaire luminous flux: 7500 lm
Luminaire efficiency: Up to 110 lm / W
Power factor: >0.9
CRI (Ra>): 80
Input Voltage: 110-264V/50-60 Hz
Luminous surface: 180°
Waterproof Level (Im): IP54
Working Temperature(℃): -20°C/+45 °C
Housing: 0.8mm steel housing
Diffuser: tempered glass cover
Installation: M8 locking nuts on the back
Application:

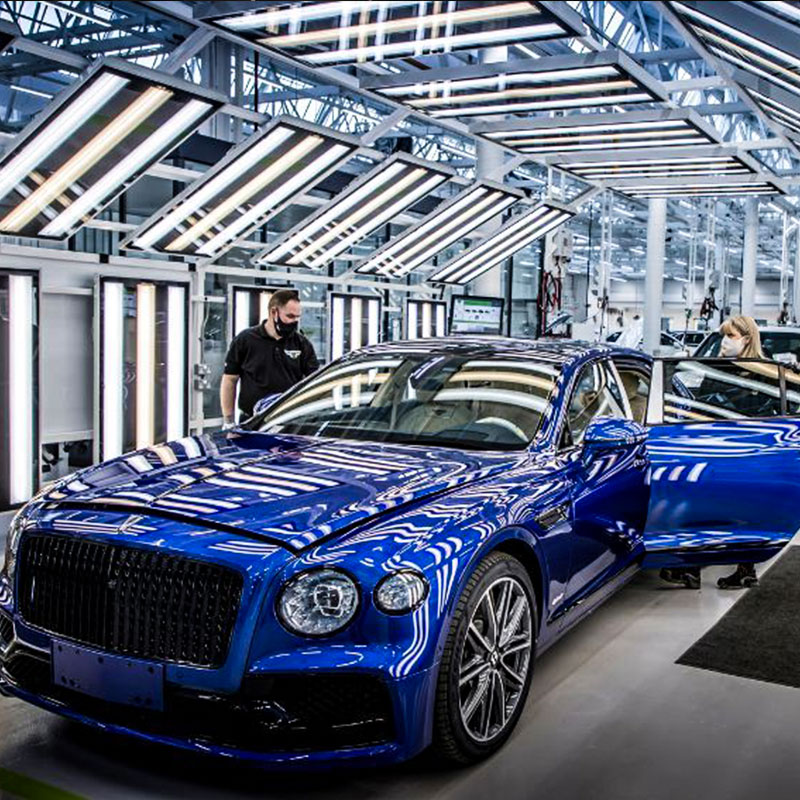

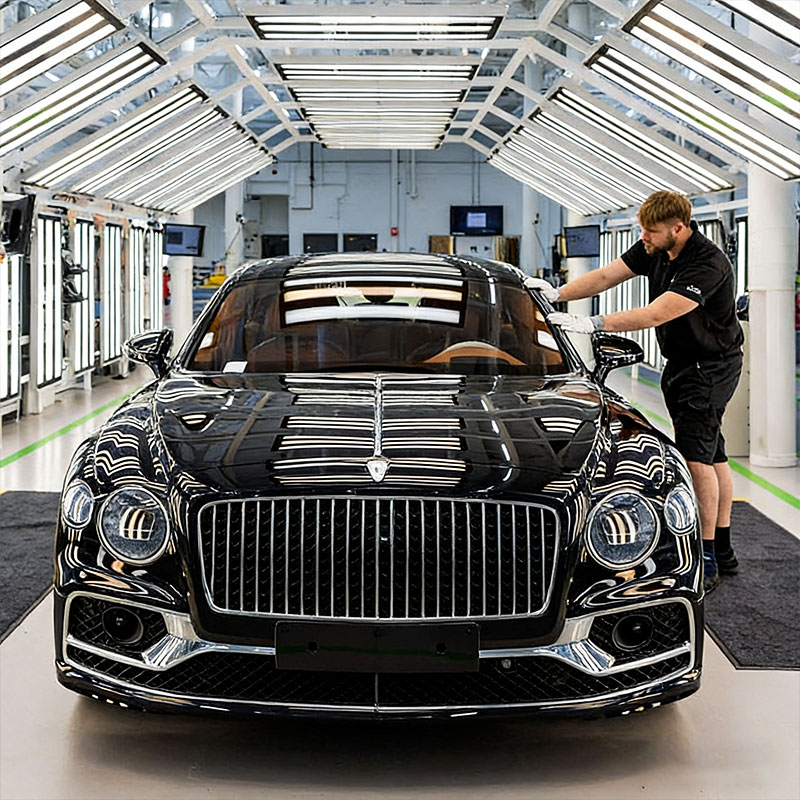

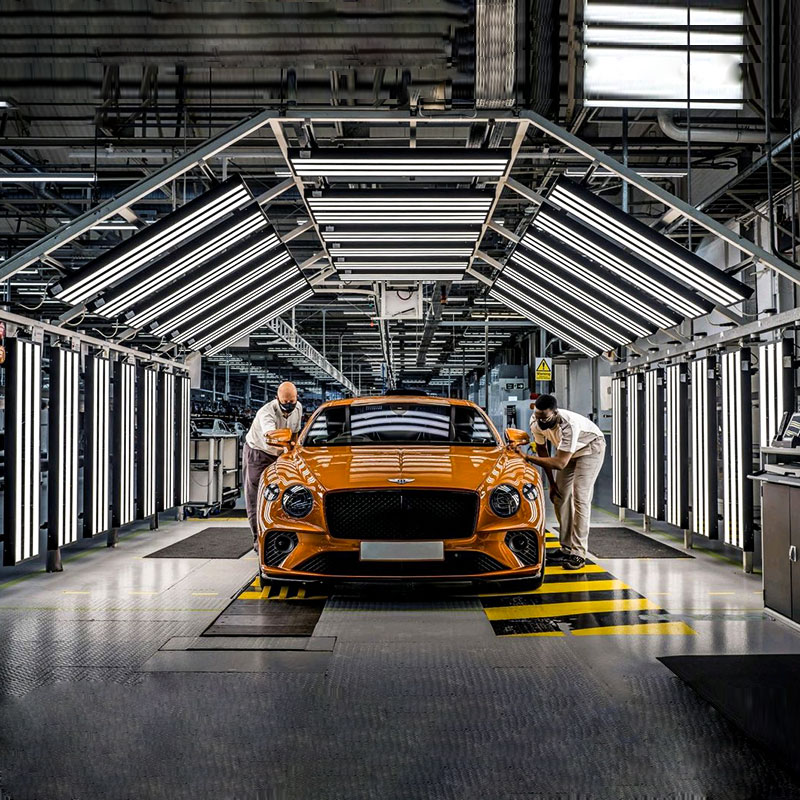

Our automotive inspection booth lighting delivers flawless visibility across all critical zones. It guarantees precise defect detection in Paint and Plastic Inspection Areas while eliminating shadows on Finesse, Inspection, and Polish Decks. This system ensures absolute accuracy and maximum efficiency for every finish.
FAQ:
Q1: Why do spray booths require higher brightness than standard workshops?
A: Spray painting demands extreme visual precision. High-brightness inspection lights painting eliminate shadows, allowing workers to spot tiny color shifts, sanding marks, and defects instantly for a flawless finish.
Q2: What is High CRI, and why is it critical for spray booths?
A: High CRI ensures true color reproduction. It prevents color misjudgment caused by distorted lighting, avoiding costly reworks and ensuring accurate matches.
Q3: What safety features are essential for spray booth lighting?
A: Fixtures must have explosion-proof certification for volatile gas environments. They also need waterproof/dustproof ratings and anti-glare design to protect operator vision in harsh conditions.
Q4: How do I determine the optimal mounting height?
A: Height depends on booth span and beam angle to ensure uniform illumination with no dark spots. We recommend combining top and side mounting for complete 360° coverage.
Q5: How can we control energy costs with continuous operation?
A: Choose industrial LED inspection lights painting. Despite a higher initial cost, their low energy use, long lifespan, and minimal heat output significantly reduce electricity bills and cooling loads for maximum ROI.
